All we do is usually connected with our tenet " Consumer initial, Rely on 1st, devoting around the food stuff packaging and environmental safety for Construction Hoist Rubber , Transmission Output Shaft , Hoist Contactor , We will endeavor to maintain our great reputation as the best products supplier in the world. If you have any questions or comments, please contact with us freely.
Special Design for Floor Door Track Rail - CNC steel pinion and gear rack M1 M1.5 M2 M2.5 M3 M4 M5 M6 M8 – Jinyang Detail:

JINGYANG-JIAXING-CNC-RACK-PINIONS (9)

M1 M1.5 M2 M2.5 M3 M4 M5 M6 M8 CNC Steel Pinion And Gear Rack

JIAXING JINGYANG CONSTRUCTION MACHINERY CO.,LTD profile
Jiaxing Jinngyang Construction Machinery Co.,Ltd is a professional factory in construction machinery, equipment, material & spare parts. Dedicated to provide a complete solution to mechanical & civil construction with quality products and perfect service Enjoying good reputation of business by respecting & satisfying our customers. Looking back to the past, we have made one brilliant achievement after another with our efforts and your support. Looking forward to the future, we are determined to be with you as always on the way to greater success and win-win results.We have following Tower crane, passenger hoist, suspended platform,electric winch, electric hoist, gear rack and pinion, worm and shaft, electric units, scaffolding and etc. In addition to the good quality of our products, we also have our profrssional technical service provide the clients with our best after-service. We have supplied more than 80 units of passenger hoist, 140 units of suspended cradle to the market since 2007.

Item Part No. English name Item Part No. English name
1 DL-0 Cage 31 WG-19 Worm gear fan
2 WG-0 Reducing device 32 MAC-8 Rubber
3 MAC-010 Motor 33 WG-5 Woem wheel
4 ZJ-0 Mast section 34 WG-15 Worm
5 XS-00 Safety device 35 MAC-9 Couping
6 HY Hydraulic spring 36 MAC-020 Pinion
7 TIE Tie-in 37 ZJ100-10 Rack
8 TL-2 Safety device spanner 38 XK Drop test operate box
9 PJ Pipe joint 39 CT Out operate box
10 BL100-G Roller 40 FR Resistance
11 BH-10 Cable joint 41 PS Waterproof plug
12 ML100-9 Gate roller lower 42 SE 3-phase swotch
13 ML100-10 Gate roller upper 43 TC Transfprmer
14 WM130-40 Rope pulley 44 SDD Annunciator
15 BS-10 “J ” type screw 45 PLC PLC Module
16 BQ-10 Cable joint 46 QF Creepage switch
17 BM-24 Screw 47 SL Limit switch
18 TL-1 Roller spanner 48 FM Belling
19 RA-9 Adjustment unit 49 JS Jacket
20 RA-12 Brake pad 50 FS Fan
21 SP Spring 51 SY EL lock
22 DL-110 Rubber pad 52 F Drop test plug
23 WG-03 Brearing 53 KCE Thermal relay
24 WG-030 Oil seal 54 SQ Braker
25 DXI-5 Nylon wheel 55 KMB Contactor
26 RA-13 Rotary disk 56 BR Brake unit
27 RA-120 Brake piece 57 SPL Speed relay
28 RA-10 Brake disc 58 EL Lamp
29 RA-7 Electromagnet 59 CS Calling system
30 CAM-3 Counter roller 60 OL Overload
JINGYANG CNC rack and pinionJINGYANG-JIAXING-CNC-RACK-PINIONS (5)JINGYANG-JIAXING-CNC-RACK-PINIONS (5)
Standard CNC Rack and Pinion components from CNC Router Parts.M1 M1.5 M2 M2.5 M3 M4 M5 M6 M8 CNC Steel Pinion And Gear Rack

Product Name

Gear rack

Specificaition

as customer require

Material

Q235 steel/ C45 steel/ stainless steel

Color

Silver white

Used

Sliding door/window/wardrobe furniture

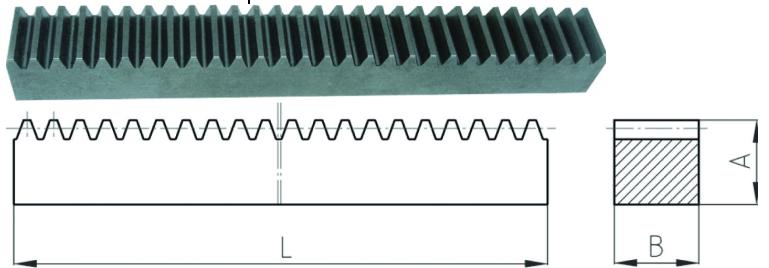

CNC rack specifications charts as below Racks

Racks According to DIN 782 Pressure angle 20°

Material:C45

Mod.

LENGTH

500

1000

2000

AXB

AXB

AXB

1

15X15

15X15

15X15

1.5

17X17

17X17

17X17

2

20X20

20X20

20X20

2.5

25X25

25X25

25X25

3

30X30

30X30

30X30

4

-

25X25

25X25

4

-

30X30

30X30

4

40X40

40X40

40X40

5

50X50

50X50

50X50

6

60X60

60X60



    Width (W) Height(H> pitch circle Length<L) Teeth distance(P) teeth deep
Type Model

International standard of gear rack

1 10 10 9 1000 3.14 Z25
  10 12 11
  10 15 14
  12 12 11
  15 15 14
  20 20 19
1.5 15 15 13.5 1000 4.71 3.375
  15 20 18.5
  16 16 14.5
  17 17 15.5
  20 20 18.5
2 20 20 18 1000 6.28 4.5
  20 25 23
  25 25 23
  20 30 28
  30 30 28
2.5 25 25 22.5 1000 7.85 5.625
  25 30 27.5
  30 30 27.5
3 30 30 27 1000 9.42 6.75
  30 35 32
4 40 40 36 1000 12,56 9
5-0 50 50 45 1000 15,7 11,25

JINGYANG-JIAXING-CNC-RACK-PINIONS (1)

 JINGYANG-JIAXING-CNC-RACK-PINIONS (6)
 JINGYANG-JIAXING-CNC-RACK-PINIONS (8)JINGYANG-JIAXING-CNC-RACK-PINIONS (7)
RFQ:
Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in
stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
before shippment.If you have another question, pls feel free to contact us as below:
Contact us
Skype:mickey1987888
Tel: +86 0573-84187637
Fax:+86 0573-841876376
Whatsapp& Mobile:+0086 18267343860

Add: No.1111,xiehe park, nanhu district, jiaxing of  Zhejiang  province, China. Close  to Shanghai  (Post code: 314000)

Email:mickey@jingyangmachinery.com

Web:www.jingyanghoist.com / www.jingyangmachinery.com / www.jingyangroup.com

Jiaxing Jingyang Construction Machinery Co.,Ltd.


Product detail pictures:

Special Design for Floor Door Track Rail -
 CNC steel pinion and gear rack   M1 M1.5 M2 M2.5 M3 M4 M5 M6 M8 – Jinyang detail pictures


Related Product Guide:
The Early Bird Gets The Worm | Worm Gearbox Speed Reducer Motor
SuperyachtNews.com – Press Releases | Saj30 For Construction Lifter

It adheres to the tenet "Honest, industrious, enterprising, innovative" to develop new products constantly. It regards customers, success as its own success. Let us develop prosperous future hand in hand for Special Design for Floor Door Track Rail - CNC steel pinion and gear rack M1 M1.5 M2 M2.5 M3 M4 M5 M6 M8 – Jinyang, The product will supply to all over the world, such as: Croatia , Jordan , Vietnam , By continuous innovation, we will provide you with more valuable products and services, and also make a contribution for the development of the automobile industry at home and abroad. Both domestic and foreign merchants are strongly welcomed to join us to grow together.

We guaranee our product all origional GJJ high quality item, no fake item supply.
