PriceList for Building Hoist Spare Parts - GJJ passenger hoist Rossi motor – Jinyang Detail:

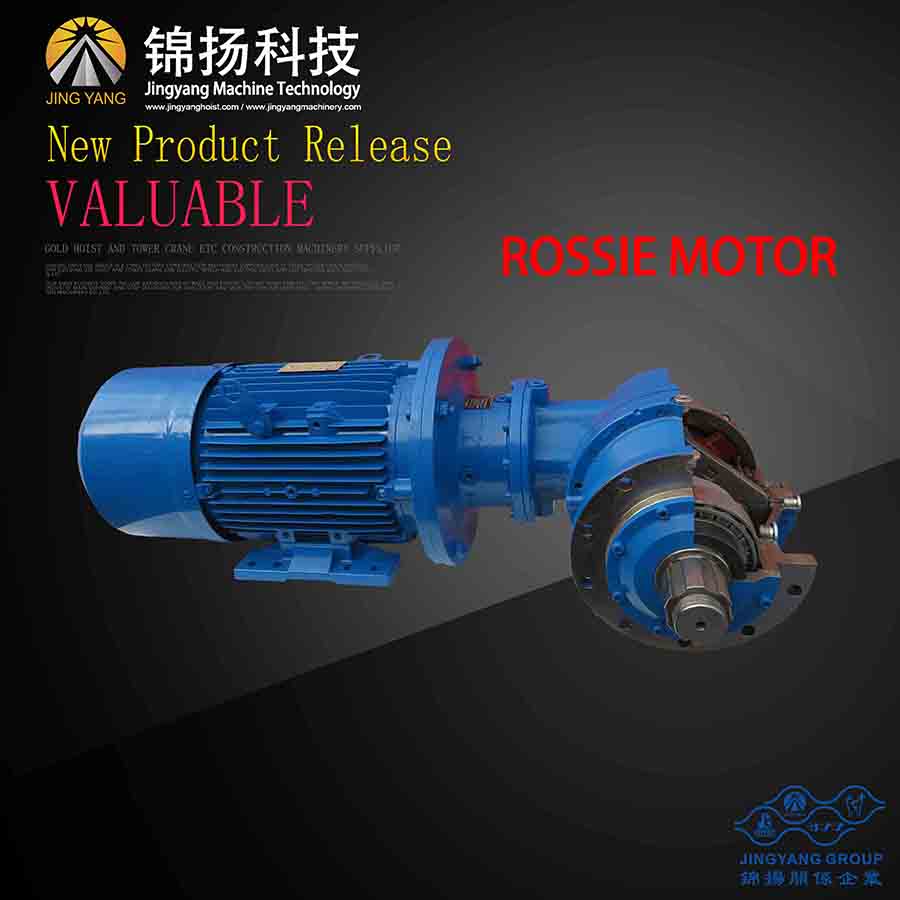

rossie-hoist-motor-gjj - 副本



GJJ passenger hoist Rossi motor

GJJ passenger hoist motor, we also provide SEW NORD Rossi motor.

Rossi HBZ_100LB4_4.25 kW

Rossi HBZ_132M4_10.6 kW

Rossi HBZ_132MC4_15.5 kW

Rossi HBZ_132S4_7.8 kW

Rossi HBZ_160L4_22.5 kW

Rossi HBZ_160SC4_15.5 kW

Rossi HBZ_180L4_33 kW

Rossi HBZ_200L4_B5_48060_36kW

380V GJJ hoist Rossi motor Good performance SC/SC electric construction hoist elevator AC motors

Model Construction hoist spare parts mechanical parts
Power 11kw/15kw
speed 1400r/min
Brakemoment 120Nm
D.Speed 1403r/min
Frequency 50Hz
Connection Y
Brake Gap 1.5mm
Voltage 380V
Current  24A a.c/1A.D.C
Lnsulation Class F/F
Model construction hoist gearbox
Ratio  16: 1
Rating 11kw
Input 1500r/min
Center distance 125

A. Features

1.It is equipped with fully safety devices to guarantee the safe working;
2.Stable running and comfortable adaptability;
3.The transmission system adopts two-drive motors and three-drive motors. Planar double-eveloping worm gear reducer is adopted ensuring the high efficiency, max payload and long service life;

4.Simple electrical control system, easy operation and convenient maintenance withlow failure rate.

B.Tower Crane Hoist Motor is one part of construction hoist:

1. Production process: Strict material selection— blanking— inspection — welding— inspection— Blasting — inspection —Baking finished or galvanized— inspection — Finished Product;

2. The product can be customized according to customers’requirements (drawing, specifications and so on);

3. The cage is boarded up by all punched aluminum sheet ,Sidewall of Wire Mesh for cage is also avaliable. The size can be arranged to your requirement;
4. Main structure of cage is made of high-quality steel after bending.(The bended steel is firm, good verticality, stability.  Moreover it ensure stable of the whole structure);
5. Electrical an Mechanical interlock: Door safety switches, Slack rope switch;

6. Upper and bottom limit swithes, trap door limit switch;
7. Overload protector;
8. Bottom Buffer;
9. Level Calling system and auto leveling device to be choose;
C.Features of the Y series 3 phase & 2 phase electric motor
1.Compact design and comfortable operating experience;

2.Single or double cage configurations;

3.Design without counterweight;
4.Use perforated aluminum plate as a decorative plate of the cage;
5.Galvanize Mast section offered;
6.Wide range of optional equipments and functions;
7.Competitive factory price;
8.Move by good quality rack and pinion;
9.Stable platform lift;

D.Our services

When your order shipping out .we will provide you a tracking no in express or B/L. then you can know clearly the status of the goods

Specifications

Type Cage Capacity (kg) Speed (m/min) Motor (kw)
SC 200 single 2000 36 3*11
SC 200/200TD double 2000*2 36 2*3*11
SC 100 single 1000 36 2*11
SC 100/100TD double 1000*2 36 2*2*11
SC 150 single 1500 36 2*11
SC 150/150TD double 1500*2 36 2*2*11
SC 270 single 2700 36 3*15
SC 270/270TD double 2700*2 36 2*3*15
SC 320 single 3200 36 3*18.5
SC 320/320TD double 3200*2 36 2*3*18.5
VFD device optional, the speed:0-36 m/min,0-63 m/min,0-96 m/min
Can be customized according to customers’ demand

rossie-hoist-motor-gjj1

rossie-hoist-motor-gjj2


Product detail pictures:

PriceList for Building Hoist Spare Parts -
 GJJ passenger hoist Rossi motor – Jinyang detail pictures


Related Product Guide:
The Ups and Downs of Elevator Replacement and Repair – A Look at Elevator Maintenance | Construction Hoist Gearbox
Shaft mounted speed reducers expanding range of industrial gearboxes | Construction Hoist Gearbox

Our pursuit and firm aim should be to "Always fulfill our buyer requirements". We carry on to produce and structure top-quality excellent solutions for equally our aged and new consumers and accomplish a win-win prospect for our consumers as well as us for PriceList for Building Hoist Spare Parts - GJJ passenger hoist Rossi motor – Jinyang, The product will supply to all over the world, such as: Mongolia , Colombia , USA , Our products have enjoyed a great reputation for their good quality, competitive prices and prompt shipment in international market. Presently, we are sincerely looking forward to cooperating with more overseas customers based on mutual benefits.

We guaranee our product all origional GJJ high quality item, no fake item supply.
