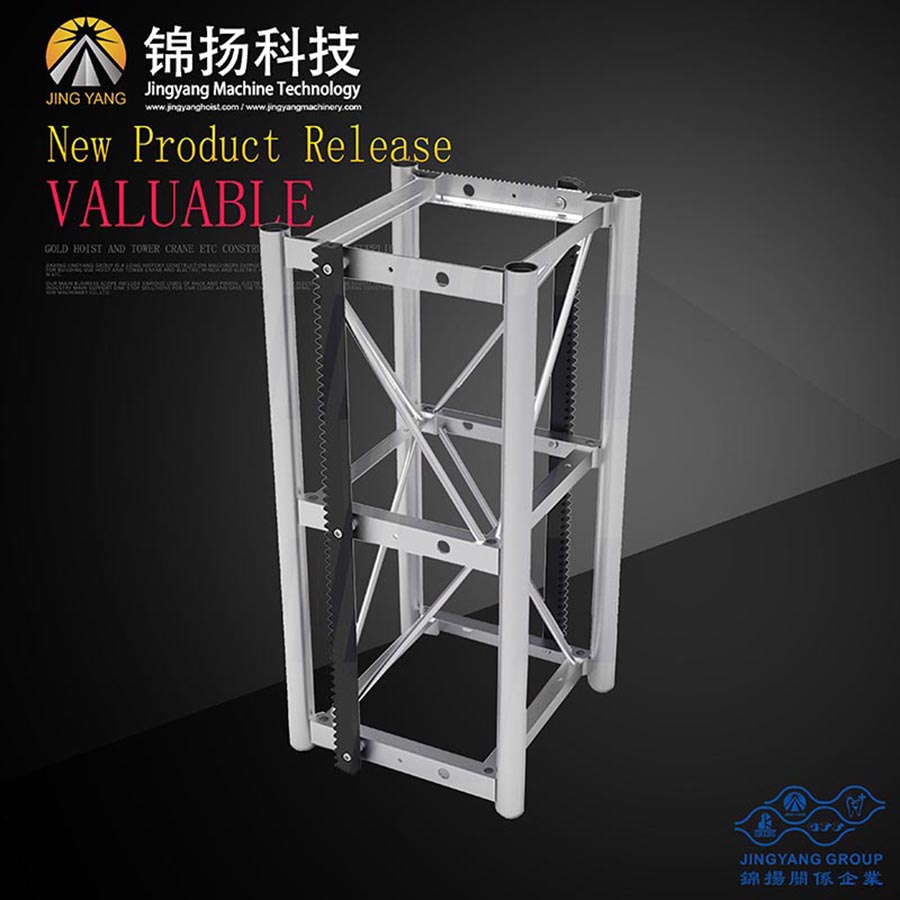

JINGYANG 650*650*1508mm passenger hoist mast section
Product Description:
GJJ mast section for construction hoist.
Compatible with GJJ, Zoomlion, Tewei hoists, etc

Height / Length 1508mm
Main chord type and center distance Φ76×4.5mm; 650×650mm
Rack type 40×60×1508mm; module=8
Material Main chord: C20E4
Rack:41 Cr4 (40Cr)
Others: E235B
Connection bolt type between neighboring mast sections 8.8 grade high strength bolt: M24×230
with “plain washer + spring washer + nut”
or “plain washer + locknut”
Mass 150kg (with twin racks assembled and without bolts)
Rack locating pin type Φ10×40mm
Other key dimensions Please refer to the drawing
Suggested max erection height Not above 150m (less than 100 pieces)
Surface finish Hot-dip galvanized or painted

gjj-passenger-hoist-mast-section (1)gjj-passenger-hoist-mast-section (2)gjj-passenger-hoist-mast-section (3)gjj-passenger-hoist-mast-section (4)
Model NO.: sc200/200; sc100/100; sc200; sc100; sc150
Lift Mechanism: Rack and Gear
Attendant: With Attendant
Deceleration Device: With Deceleration Device
Elevator Door: Straight Fractional Door
Cage: Double Cage(with Operation Cabin or No Cabin)
Cage Dimension: 3*1.5*2.2m,3*1.3*2.2m,3.2*1.5*2.2m(Changeable )
Rated Lifting Speed: 60m/Min
Max Erection Height: 250m
Motor Power: 2X13kw Per Cage
Mast Section Size: 650X650X1508mm (or 800X800X1508mm)
Mast Section Weight: 145-180kg (Double Racks)
Wall-Tie Adjust Length&Qty: 2.8-3.2m 1pieces/5 Mast (Can Be Adjusted)
Main Electrical System: Schneider(Can Be Equipped with PLC Fault Sensor )
Trademark: JINGYANG
Transport Package: Container
Specification: SC100, SC200, SC150, SC100Z, SC150Z, SC200Z
Origin: China

SC200/200 SC100/100 Construction Hoist/Building Lift/Rack and Pinion elevator/Construction Elevator
JIAXING JINGYANG is a professional manufacturer of construction hoist:

1.10 Years Manufacture Experience
2.Export to more than 20 Countries
3.1 Year Warranty and Quick Delivery
4. Quality approved by CE,ISO Certificates
5. We can supply customized OEM service
Technical parameter

1.could be design according to different building situation. 5. All Production Line adopt special fixture, mould, gauge made by us to ensure all detaile size.
2. With ISO9001, CE, SGS, BV, SASO certifications 6. Select high quality raw material from China Bao Steel Group, other like motors, reducers, gearbox, safety
device with low noise, electrics is schneider or Korea repute brand with reliable quality.
3. Double or Single cage with loading capacity from 500kg to 3000kg. 7. Special design, compact and reasonable structure, easy to installation and adjustment.
4. With Frequency Inverter or DOL control system with low speed, MID speed, and high speed 8. Each equipment should be test and make record in Factory, all details will be adjust like
Motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section
erection test to ensure the completed equipment run well when taken into use.



Characteristic Model Rated Loading Lifting Speed Motor Power
Double cages SC200/200 2x2000kg 33m/min 2x(3x11kw) /
2x(3×8.5kw)
SC150/150 2x1500kg 33m/min 2x(2x13kw)
SC100/100 2x1000kg 33m/min 2x(2x11kw)
Single cage SC200 2000kg 33m/min 3x11kw /
3×8.5kw
SC150 1500kg 33m/min 2x13kw
SC100 1000kg 33m/min 2x11kw



Characteristics Model Rated Loading Lifting Speed Motor Power
Double cages Low speed SC200/200D 2X2000kg 0-40m/min 2x(3x11kw) /
2x(3×8.5kw)
SC100/100D 2x1000kg 0-40m/min 2x(2x13kw)
Mid speed SC200/200Z 2x2000kg 0-60m/min 2x(2x23kw)
SC100/100Z 2x1000kg 0-60m/min 2x(2x15kw)
Single cage Low speed SC200D 2000kg 0-40m/min 3x11kw /
3×8.5kw
SC100D 1000kg 0-40m/min 2x13kw
Mid speed SC200Z 2000kg 0-60m/min 2x23kw
SC100Z 1000kg 0-60m/min 2x15kw

 gjj-passenger-hoist-mast-section (5)gjj-passenger-hoist-mast-section (6)gjj-passenger-hoist-mast-section (7)gjj-passenger-hoist-mast-section (8)
RFQ
Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in
stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
before shippment.If you have another question, pls feel free to contact us as below:
Contact us
Skype:mickey1987888
Tel: +86 0573-84187637
Fax:+86 0573-841876376
Whatsapp& Mobile:+0086 18267343860
Add: No.1111,xiehe park, nanhu district, jiaxing of  Zhejiang  province, China. Close  to Shanghai  (Post code: 314000)
Email:mickey@jingyangmachinery.com
Web:www.jingyanghoist.com / www.jingyangmachinery.com / www.jingyangroup.com
Jiaxing Jingyang Construction Machinery Co.,Ltd.

Relative spare parts:

Item Part No. English name Item Part No. English name
1 DL-0 Cage 31 WG-19 Worm gear fan
2 WG-0 Reducing device 32 MAC-8 Rubber
3 MAC-010 Motor 33 WG-5 Woem wheel
4 ZJ-0 Mast section 34 WG-15 Worm
5 XS-00 Safety device 35 MAC-9 Couping
6 HY Hydraulic spring 36 MAC-020 Pinion
7 TIE Tie-in 37 ZJ100-10 Rack
8 TL-2 Safety device spanner 38 XK Drop test operate box
9 PJ Pipe joint 39 CT Out operate box
10 BL100-G Roller 40 FR Resistance
11 BH-10 Cable joint 41 PS Waterproof plug
12 ML100-9 Gate roller lower 42 SE 3-phase swotch
13 ML100-10 Gate roller upper 43 TC Transfprmer
14 WM130-40 Rope pulley 44 SDD Annunciator
15 BS-10 “J ” type screw 45 PLC PLC Module
16 BQ-10 Cable joint 46 QF Creepage switch
17 BM-24 Screw 47 SL Limit switch
18 TL-1 Roller spanner 48 FM Belling
19 RA-9 Adjustment unit 49 JS Jacket
20 RA-12 Brake pad 50 FS Fan
21 SP Spring 51 SY EL lock
22 DL-110 Rubber pad 52 F Drop test plug
23 WG-03 Brearing 53 KCE Thermal relay
24 WG-030 Oil seal 54 SQ Braker
25 DXI-5 Nylon wheel 55 KMB Contactor
26 RA-13 Rotary disk 56 BR Brake unit
27 RA-120 Brake piece 57 SPL Speed relay
28 RA-10 Brake disc 58 EL Lamp
29 RA-7 Electromagnet 59 CS Calling system
30 CAM-3 Counter roller 60 OL Overload
