GJJ-drop-test-operate-box
main used for GJJ passenger hoist drop test use, origional GJJ
JIAXING JINGYANG CONSTRUCTION MACHINERY CO.,LTD
Profile
Jiaxing Jinngyang Construction Machinery Co.,Ltd is a professional factory in construction machinery, equipment, material & spare parts. Dedicated to provide a complete solution to mechanical & civil construction with quality products and perfect service Enjoying good reputation of business by respecting & satisfying our customers. Looking back to the past, we have made one brilliant achievement after another with our efforts and your support. Looking forward to the future, we are determined to be with you as always on the way to greater success and win-win results.We have following Tower crane, passenger hoist, suspended platform,electric winch, electric hoist, gear rackand pinion, worm and shaft, electric units, scaffolding and etc. In addition to the good quality of our products,we also have our profrssional technical service provide the clients with our best after-service. We have supplied more than 80 units of passenger hoist, 140 units of suspended cradle to the market since 2007.
| Classification | |||||
| Technical data of SC series genernal hoist | |||||
| Model | Capacity (kg) | Lifting speed (m/min) | Motor power _ | Counter weight (kg) | |
| With counter weight | SCD200 | 2000 | 36 | 2×11 | 1000 |
| SCD270TD | 2700 | 36 | 3×11 | 1000 | |
| SCD320TD | 3200 | 36 | 3×11 | 1200 | |
| No counter weight | SC100TD | 1000 | 36 | 2×11 | / |
| SC120TD | 1200 | 36 | 2×11 | / | |
| SC200TD | 2000 | 36 | 3×11 | / | |
| With counter weight | SCD200/200 | 2×2000 | 36 | 2x2x11 | 2×1000 |
| SCD270/270TD | 2×2700 | 36 | 2x3x11 | 2×1000 | |
| SCD320/320TD | 2×3200 | 36 | 2x3x11 | 2×1200 | |
| No counter weight | SC100/100TD | 2×1000 | 36 | 2x2x11 | / |
| SC120/120TD | 2×1200 | 36 | 2x2x11 | / | |
| SC200/200TD | 2×2000 | 36 | 2x3x11 | / | |
| Technical data of SC series frequency convertible hoist | |||||
| Classification | Model | Capacity / per cage (kg) | Lifting speed (m/min) | Motor power / per cage (kW) | Counter weight / per cage(kg) |
| With counter weight | SCD200G (SCD200/200G) | 2000 | 0-63 | 2×15 | 2000 |
| 2000 | 0~96 | 3×15 | 2000 | ||
| 2000 | 0~96 | 2×22 | 2000 | ||
| SCD270G (SCD270/270G) | 2700 | 0-36 | 3×11 | 1000 | |
| 2700 | 0~63 | 3×15 | 2000 | ||
| 2700 | 0~96 | 3×18.5 | 2000 | ||
| SCD320G (SCD320/320G) | 3200 | 0~36 | 3×11 | 1200 | |
| 3200 | 0~63 | 3×15 | 2200 | ||
| 3200 | 0-96 | 3×22 | 2200 | ||
| TO! No counter weight | SC100G (SC100/100G) | 1000 | 0〜36 | 2×11 | / |
| SC120G (SC120/120G) | 1200 | 0〜63 | 3×15 | / | |
| 1200 | 0~96 | 2×18.5 | / | ||
| SC200G (SC200/200G) | 2000 | 0-36 | 3×11 | / | |
| 2000 | 0〜46 | 2×11 | / | ||
| 2000 | 0〜63 | 3×11 | / | ||
| 5K2000 | 0〜96 | 3×18.5 | / | ||
| 2000 | 0 〜120 | 3×22 | / | ||
| SC270G (SC270/270G) | 2700 | 0~46 | 3×11 | / | |
| 2700 | 0~63 | 3×15 | / | ||
| 2700 | 0~96 | 3×22 | / | ||
| SC320G (SC320/320G) | 5K3200 | 0〜46 | 3×15 | / | |
| 3200 | 0〜63 | 3×18.5 | / | ||
| Remark : | |||||
| Standard cage dimension is 3.2xl.5×2.5m(2.35m), other available cage dimension: 2.5xl.3×2.5 , 3xl.3×2.5,3.6xl.5×2.5 , 3.8xl.5×2.5,4.0xl.5×2.5,4.2xl.5×2.5 , Special dimension can be made according to requirement of customer; | |||||
| Capacity lifting speed ect.can be selected according to requirement of customer; | |||||
| Standard mast section is 650x650x 1508mm,or can be made according to requirement of customer; | |||||
| Motor/reducer option: GJJ motor(chinese);nord motor special for GJJ( Germany); | |||||
| Tie-in type I apply for the heights 150m; | |||||
| The hoist over 200 meters with counter weight is not reconmended. | |||||
| Item | Part No. | English name | Item | Part No. | English name |
| 1 | DL-0 | Cage | 31 | WG-19 | Worm gear fan |
| 2 | WG-0 | Reducing device | 32 | MAC-8 | Rubber |
| 3 | MAC-010 | Motor | 33 | WG-5 | Woem wheel |
| 4 | ZJ-0 | Mast section | 34 | WG-15 | Worm |
| 5 | XS-00 | Safety device | 35 | MAC-9 | Couping |

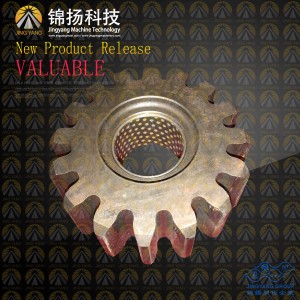

| 6 | HY | Hydraulic spring | 36 | MAC-020 | Pinion |
| 7 | TIE | Tie-in | 37 | ZJ100-10 | Rack |
| 8 | TL-2 | Safety device spanner | 38 | XK | Drop test operate box |
| 9 | PJ | Pipe joint | 39 | CT | Out operate box |
| 10 | BL100-G | Roller | 40 | FR | Resistance |
| 11 | BH-10 | Cable joint | 41 | PS | Waterproof plug |
| 12 | ML100-9 | Gate roller lower | 42 | SE | 3-phase swotch |
| 13 | ML100-10 | Gate roller upper | 43 | TC | Transfprmer |
| 14 | WM130-40 | Rope pulley | 44 | SDD | Annunciator |
| 15 | BS-10 | “J ” type screw | 45 | PLC | PLC Module |
| 16 | BQ-10 | Cable joint | 46 | QF | Creepage switch |

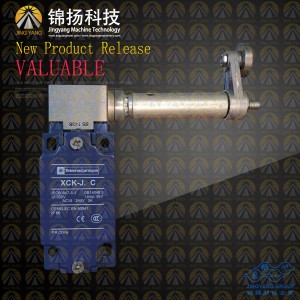

| 17 | BM-24 | Screw | 47 | SL | Limit switch |
| 18 | TL-1 | Roller spanner | 48 | FM | Belling |
| 19 | RA-9 | Adjustment unit | 49 | JS | Jacket |
| 20 | RA-12 | Brake pad | 50 | FS | Fan |
| 21 | SP | Spring | 51 | SY | EL lock |
| 22 | DL-110 | Rubber pad | 52 | F | Drop test plug |
| 23 | WG-03 | Brearing | 53 | KCE | Thermal relay |
| 24 | WG-030 | Oil seal | 54 | SQ | Braker |
| 25 | DXI-5 | Nylon wheel | 55 | KMB | Contactor |
| 26 | RA-13 | Rotary disk | 56 | BR | Brake unit |
| 27 | RA-120 | Brake piece | 57 | SPL | Speed relay |
| 28 | RA-10 | Brake disc | 58 | EL | Lamp |
| 29 | RA-7 | Electromagnet | 59 | CS | Calling system |
| 30 | CAM-3 | Counter roller | 60 | OL | Overload |
RFQ
Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in
stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
before shippment.If you have another question, pls feel free to contact us as below:
Contact us
Skype:mickey1987888
Tel: +86 0573-84187637
Fax:+86 0573-841876376
Whatsapp& Mobile:+0086 18267343860Add: No.1111,xiehe park, nanhu district, jiaxing of Zhejiang province, China. Close to Shanghai (Post code: 314000)
Email:mickey@jingyangmachinery.com
Web:www.jingyanghoist.com / www.jingyangmachinery.com / www.jingyangroup.com
Jiaxing Jingyang Construction Machinery Co.,Ltd.
We guaranee our product all origional GJJ high quality item, no fake item supply.
