Building hoist material hoist reducer
Product code: JY-RD-116-B-2
Main used for the passenger and material hoist, special model with speed reducer equipment, before purchase send us the image so that we can know what type is require.
Profile

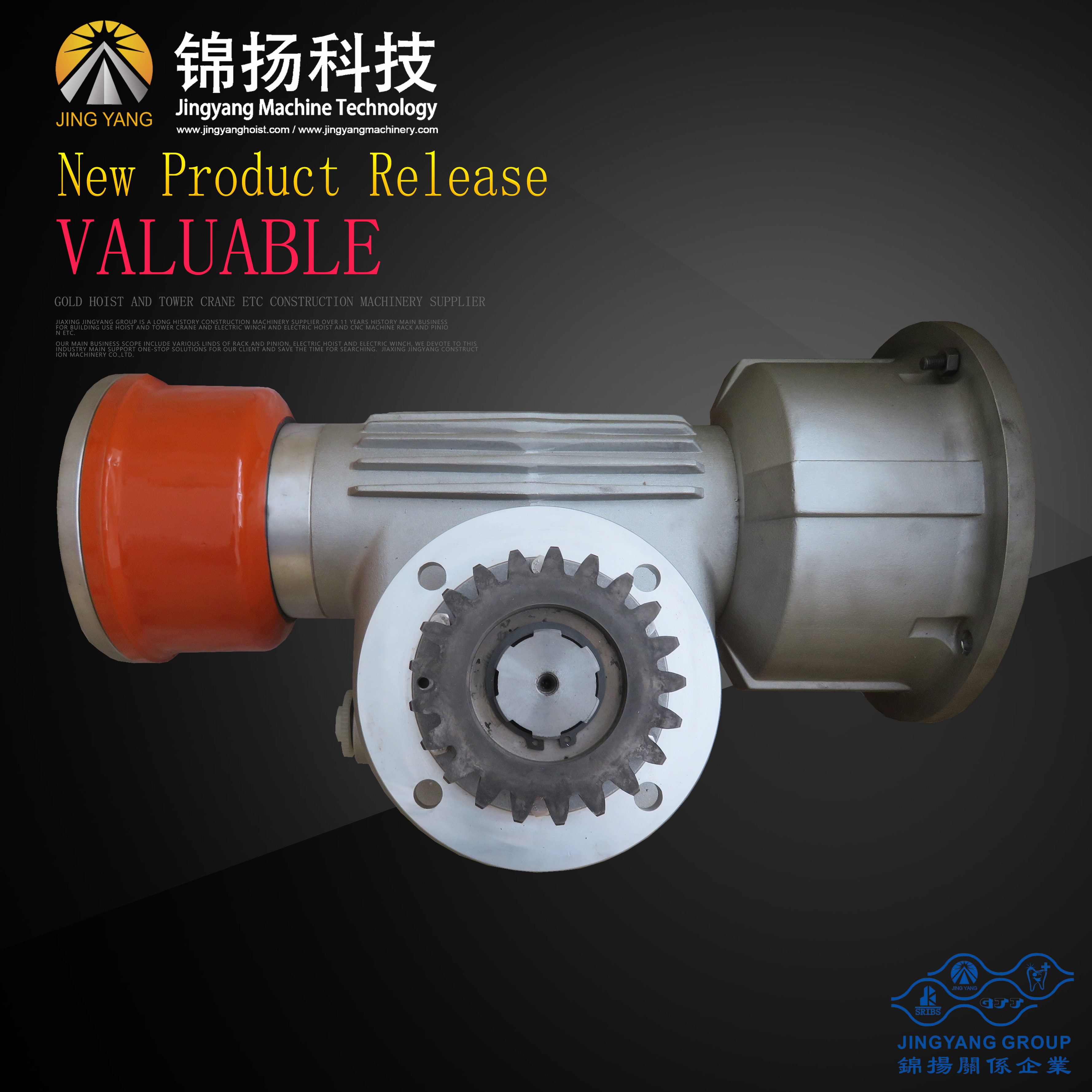

CWtype reducer main research and design for the passenger hoist transmission use device.Whorm wheel we take superior alloy steel, hard teeth surface, finial finish, whorm wheel take superior tin br onze, body take high strength alluminium，we adopt r eliable design and special treatment, excellent mecha nical performance and more bigger load capacity, hig her transmission effiency, small noise, stable working ensure safety.
| model | Ratio speed | Speed m | Rated power Pi | Out put t2 | trasmission | Weight |
| I | r/min | KW | N • m | % | kg | |
| CW125-10-IF | 10 | 1500 | 14.9 | 890 | 91.5 | 60 |
| CW125-12-IF | 12 | 1500 | 11.8 | 840 | 91.5 | 60 |
| CW125-14-IF | 14 | 1500 | 11.6 | 920 | 90 | 60 |
| CW125-16-IF | 16 | 1500 | 11.6 | 1000 | 88 | 60 |
| CW125-20-IF | 20 | 1500 | 9 | 1010 | 88 | 60 |
Technical parameterSpecifications Manual
1.OutlineCircular arc & cylindrical worm reducer has three characteristics. First, bearing big capacity; Second, high efficient transmission; Third, compact and reasonable structure. The suitable working surrounding is -40 ℃ ~ +40 ℃. The input rotational speed is not more than 1,500 Rpm.2.Installation and maintenanceReduction gear should reliably install on the stable foundation, and it should be convenient to refuel and drain oil and also the air is smooth.After the reduction gear installment, operation by hand should be flexible without obstruct. Before the normal operation of reduction gear, it must be carrying on the idling revolution. When reduction gear doesn’t have any breakdown, please start following several stages to load: in the first stage, carrying on 25% of the rating load; in the second stage, carrying on 50%; in the third stage, carrying on 100%.
Each rolling stage takes oil temperature balance as a standard, which is not less than 2 hours, and the maximum oil temperature can’t surpass 100 ℃. Reduction gear revolution is steady without impact vibration and noise and it should be lubricating very well, and anywhere can’t leak the oil.
3.The lubrication of reduction gear
Owing to this structure, reduction gear makes use of oiled lubrication. (Recommendation: worm-gear oil N320 and ambient temperature： 0 ℃ ~45 ℃). When reduction gear uses in the first time, the lubrication should be replaced after 200 hours, and later it should be replaced every 4,500 working-hours.
4.Attention
The user can’t disassemble spare parts of reduction gear to overhaul. If machine is working exceptionally, please promptly contact with the factory.
