Al SAFETY ASSISTANT SYSTEM
GJJ Al Lift presented by GJJ Al Research Center (jointly by GJJ, ZheJiang University, Jiaxing Jingyang CO. LTD.). We improved more than 20 hardware/funtional modules with the latest Al Technology with integrated computerization to develop an “Al Safety Assistance System” • The “Al Interactive System” provides a real time safety inspection/safety control, Intelligent management/warning, to actualize the GJJ lift by “seeing” , “hearing” , “touching” , “speaking” and even “thinking”.
This Al armed Technology maximizes the GJJ lift for “user safety protection.”

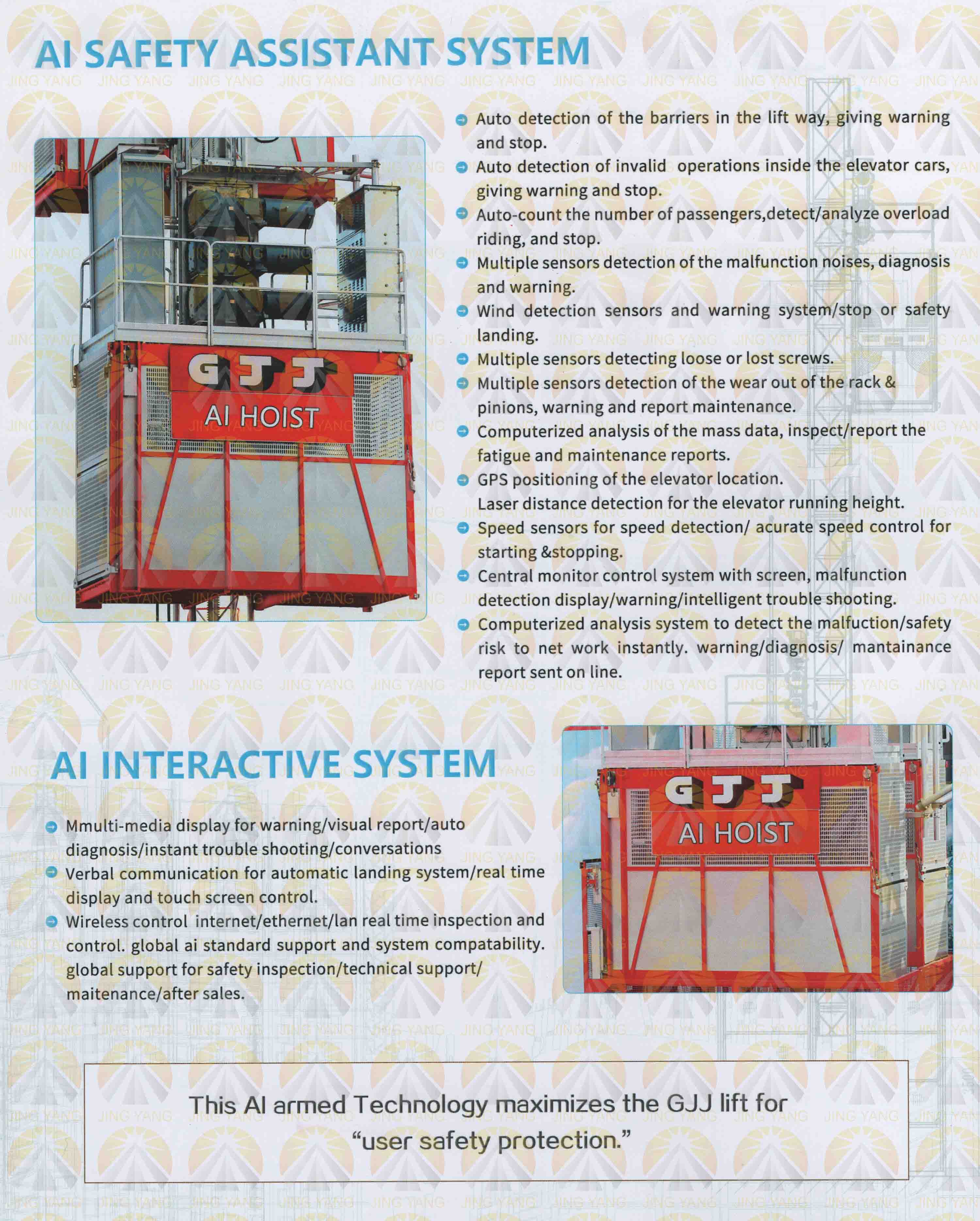

Al SAFETY ASSISTANT SYSTEM
Auto detection of the barriers in the lift way, giving warning and stop.
Auto detection of invalid operations inside the elevator cars, giving warning and stop.
Auto-count the number of passengers,detect/analyze overload riding, and stop.
Multiple sensors detection of the malfunction noises, diagnosis and warning.
Wind detection sensors and warning system/stop or safety landing.
Multiple sensors detecting loose or lost screws.
Multiple sensors detection of the wear out of the rack & pinions, warning and report maintenance.
Computerized analysis of the mass data, inspect/report the fatigue and maintenance reports.
GPS positioning of the elevator location.
Laser distance detection for the elevator running height.
Speed sensors for speed detection/ acurate speed control for starting &stopping.
Central monitor control system with screen, malfunction detection display/warning/intelligent trouble shooting.
Computerized analysis system to detect the malfuction/safety risk to net work instantly, warning/diagnosis/ mantainance report sent on line.
Al INTERACTIVE SYSTEM
Mmulti-media display for warning/visual report/auto diagnosis/instant trouble shooting/conversations
Verbal communication for automatic landing system/real time display and touch screen control.
Wireless control internet/ethernet/lan real time inspection and control, global ai standard support and system compatability. global support for safety inspection/technical support/ maitenance/after sales.
| Classification | |||||
| Technical data of SC series genernal hoist | |||||
| Model | Capacity (kg) | Lifting speed (m/min) | Motor power _ | Counter weight (kg) | |
| With counter weight | SCD200 | 2000 | 36 | 2×11 | 1000 |
| SCD270TD | 2700 | 36 | 3×11 | 1000 | |
| SCD320TD | 3200 | 36 | 3×11 | 1200 | |
| No counter weight | SC100TD | 1000 | 36 | 2×11 | / |
| SC120TD | 1200 | 36 | 2×11 | / | |
| SC200TD | 2000 | 36 | 3×11 | / | |
| With counter weight | SCD200/200 | 2×2000 | 36 | 2x2x11 | 2×1000 |
| SCD270/270TD | 2×2700 | 36 | 2x3x11 | 2×1000 | |
| SCD320/320TD | 2×3200 | 36 | 2x3x11 | 2×1200 | |
| No counter weight | SC100/100TD | 2×1000 | 36 | 2x2x11 | / |
| SC120/120TD | 2×1200 | 36 | 2x2x11 | / | |
| SC200/200TD | 2×2000 | 36 | 2x3x11 | / | |
| Technical data of SC series frequency convertible hoist | |||||
| Classification | Model | Capacity / per cage (kg) | Lifting speed (m/min) | Motor power / per cage (kW) | Counter weight / per cage(kg) |
| With counter weight | SCD200G (SCD200/200G) | 2000 | 0-63 | 2×15 | 2000 |
| 2000 | 0~96 | 3×15 | 2000 | ||
| 2000 | 0~96 | 2×22 | 2000 | ||
| SCD270G (SCD270/270G) | 2700 | 0-36 | 3×11 | 1000 | |
| 2700 | 0~63 | 3×15 | 2000 | ||
| 2700 | 0~96 | 3×18.5 | 2000 | ||
| SCD320G (SCD320/320G) | 3200 | 0~36 | 3×11 | 1200 | |
| 3200 | 0~63 | 3×15 | 2200 | ||
| 3200 | 0-96 | 3×22 | 2200 | ||
| TO! No counter weight | SC100G (SC100/100G) | 1000 | 0〜36 | 2×11 | / |
| SC120G (SC120/120G) | 1200 | 0〜63 | 3×15 | / | |
| 1200 | 0~96 | 2×18.5 | / | ||
| SC200G (SC200/200G) | 2000 | 0-36 | 3×11 | / | |
| 2000 | 0〜46 | 2×11 | / | ||
| 2000 | 0〜63 | 3×11 | / | ||
| 5K2000 | 0〜96 | 3×18.5 | / | ||
| 2000 | 0 〜120 | 3×22 | / | ||
| SC270G (SC270/270G) | 2700 | 0~46 | 3×11 | / | |
| 2700 | 0~63 | 3×15 | / | ||
| 2700 | 0~96 | 3×22 | / | ||
| SC320G (SC320/320G) | 5K3200 | 0〜46 | 3×15 | / | |
| 3200 | 0〜63 | 3×18.5 | / | ||
| Remark : | |||||
| Standard cage dimension is 3.2xl.5×2.5m(2.35m), other available cage dimension: 2.5xl.3×2.5 , 3xl.3×2.5,3.6xl.5×2.5 , 3.8xl.5×2.5,4.0xl.5×2.5,4.2xl.5×2.5 , Special dimension can be made according to requirement of customer; | |||||
| Capacity lifting speed ect.can be selected according to requirement of customer; | |||||
| Standard mast section is 650x650x 1508mm,or can be made according to requirement of customer; | |||||
| Motor/reducer option: GJJ motor(chinese);nord motor special for GJJ( Germany); | |||||
| Tie-in type I apply for the heights 150m; | |||||
| The hoist over 200 meters with counter weight is not reconmended. | |||||
| Item | Part No. | English name | Item | Part No. | English name |
| 1 | DL-0 | Cage | 31 | WG-19 | Worm gear fan |
| 2 | WG-0 | Reducing device | 32 | MAC-8 | Rubber |
| 3 | MAC-010 | Motor | 33 | WG-5 | Woem wheel |
| 4 | ZJ-0 | Mast section | 34 | WG-15 | Worm |
| 5 | XS-00 | Safety device | 35 | MAC-9 | Couping |
| 6 | HY | Hydraulic spring | 36 | MAC-020 | Pinion |
| 7 | TIE | Tie-in | 37 | ZJ100-10 | Rack |
| 8 | TL-2 | Safety device spanner | 38 | XK | Drop test operate box |
| 9 | PJ | Pipe joint | 39 | CT | Out operate box |
| 10 | BL100-G | Roller | 40 | FR | Resistance |
| 11 | BH-10 | Cable joint | 41 | PS | Waterproof plug |
| 12 | ML100-9 | Gate roller lower | 42 | SE | 3-phase swotch |
| 13 | ML100-10 | Gate roller upper | 43 | TC | Transfprmer |
| 14 | WM130-40 | Rope pulley | 44 | SDD | Annunciator |
| 15 | BS-10 | “J ” type screw | 45 | PLC | PLC Module |
| 16 | BQ-10 | Cable joint | 46 | QF | Creepage switch |
| 17 | BM-24 | Screw | 47 | SL | Limit switch |
| 18 | TL-1 | Roller spanner | 48 | FM | Belling |
| 19 | RA-9 | Adjustment unit | 49 | JS | Jacket |
| 20 | RA-12 | Brake pad | 50 | FS | Fan |
| 21 | SP | Spring | 51 | SY | EL lock |
| 22 | DL-110 | Rubber pad | 52 | F | Drop test plug |
| 23 | WG-03 | Brearing | 53 | KCE | Thermal relay |
| 24 | WG-030 | Oil seal | 54 | SQ | Braker |
| 25 | DXI-5 | Nylon wheel | 55 | KMB | Contactor |
| 26 | RA-13 | Rotary disk | 56 | BR | Brake unit |
| 27 | RA-120 | Brake piece | 57 | SPL | Speed relay |
| 28 | RA-10 | Brake disc | 58 | EL | Lamp |
| 29 | RA-7 | Electromagnet | 59 | CS | Calling system |
| 30 | CAM-3 | Counter roller | 60 | OL | Overload |
