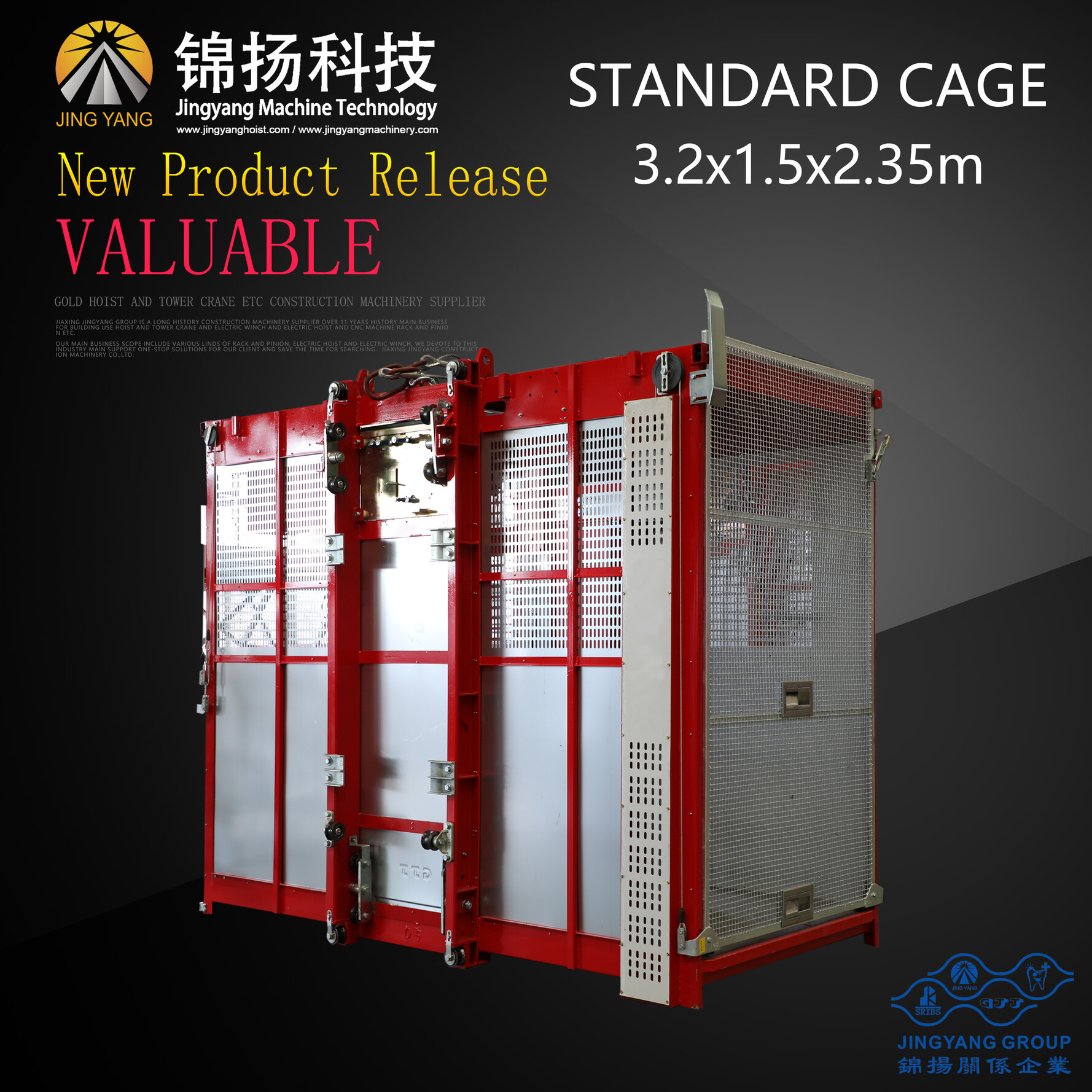

GJJ origional standard cage

Short Description:

Supply Ability: 10000 Piece/Pieces per Month

Loading Port: Shanghai

Payment Terms: T/T % in advance

Send email to us Download as PDF

Product Detail

Quality guarantee

Product Tags

JIAXING JINGYANG CONSTRUCTION MACHINERY CO.,LTD profile
Jiaxing Jinngyang Construction Machinery Co.,Ltd is a professional factory in construction machinery, equipment, material & spare parts. Dedicated to provide a complete solution to mechanical & civil construction with quality products and perfect service Enjoying good reputation of business by respecting & satisfying our customers. Looking back to the past, we have made one brilliant achievement after another with our efforts and your support. Looking forward to the future, we are determined to be with you as always on the way to greater success and win-win results.We have following Tower crane, passenger hoist, suspended platform,electric winch, electric hoist, gear rack and pinion, worm and shaft, electric units, scaffolding and etc. In addition to the good quality of our products, we also have our profrssional technical service provide the clients with our best after-service. We have supplied more than 80 units of passenger hoist, 140 units of suspended cradle to the market since 2007.

JINGYANG 650*650*1508mm passenger hoist mast section
Product Description:
GJJ mast section for construction hoist.
Compatible with GJJ, Zoomlion, Tewei hoists, etc

Height / Length	1508mm
Main chord type and center distance	Φ76×4.5mm; 650×650mm
Rack type	40×60×1508mm; module=8
Material	Main chord: C20E4
	Rack:41 Cr4 (40Cr)
	Others: E235B
Connection bolt type between neighboring mast sections	8.8 grade high strength bolt: M24×230
	with “plain washer + spring washer + nut”
	or “plain washer + locknut”
Mass	150kg (with twin racks assembled and without bolts)
Rack locating pin type	Φ10×40mm
Other key dimensions	Please refer to the drawing
Suggested max erection height	Not above 150m (less than 100 pieces)
Surface finish	Hot-dip galvanized or painted

Model NO.: sc200/200; sc100/100; sc200; sc100; sc150

Lift Mechanism: Rack and Gear

Attendant: With Attendant

Deceleration Device: With Deceleration Device

Elevator Door: Straight Fractional Door

Cage: Double Cage(with Operation Cabin or No Cabin)

Cage Dimension: 3*1.5*2.2m,3*1.3*2.2m,3.2*1.5*2.2m(Changeable )

Rated Lifting Speed: 60m/Min

Max Erection Height: 250m

Motor Power: 2X13kw Per Cage

Mast Section Size: 650X650X1508mm (or 800X800X1508mm)

Mast Section Weight: 145-180kg (Double Racks)

Wall-Tie Adjust Length&Qty: 2.8-3.2m 1pieces/5 Mast (Can Be Adjusted)

Main Electrical System: Schneider(Can Be Equipped with PLC Fault Sensor )

Trademark: JINGYANG

Transport Package: Container

Specification: SC100, SC200, SC150, SC100Z, SC150Z, SC200Z

Origin: China

SC200/200 SC100/100 Construction Hoist/Building Lift/Rack and Pinion elevator/Construction Elevator
JIAXING JINGYANG is a professional manufacturer of construction hoist:

1.10 Years Manufacture Experience
2.Export to more than 20 Countries
3.1 Year Warranty and Quick Delivery
4. Quality approved by CE,ISO Certificates
5. We can supply customized OEM service

Technical parameter

1.could be design according to different building situation.	5. All Production Line adopt special fixture, mould, gauge made by us to ensure all detaile size.
2. With ISO9001, CE, SGS, BV, SASO certifications	6. Select high quality raw material from China Bao Steel Group, other like motors, reducers, gearbox, safety
2. With ISO9001, CE, SGS, BV, SASO certifications	device with low noise, electrics is schneider or Korea repute brand with reliable quality.
3. Double or Single cage with loading capacity from 500kg to 3000kg.	7. Special design, compact and reasonable structure, easy to installation and adjustment.
4. With Frequency Inverter or DOL control system with low speed, MID speed, and high speed	8. Each equipment should be test and make record in Factory, all details will be adjust like
	Motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section
	erection test to ensure the completed equipment run well when taken into use.

Characteristic	Model	Rated Loading	Lifting Speed	Motor Power
Double cages	SC200/200	2x2000kg	33m/min	2x(3x11kw) /
	SC200/200	2x2000kg	33m/min	2x(3×8.5kw)
	SC150/150	2x1500kg	33m/min	2x(2x13kw)
	SC100/100	2x1000kg	33m/min	2x(2x11kw)
Single cage	SC200	2000kg	33m/min	3x11kw /
	SC200	2000kg	33m/min	3×8.5kw
	SC150	1500kg	33m/min	2x13kw
	SC100	1000kg	33m/min	2x11kw

Characteristics		Model	Rated Loading	Lifting Speed	Motor Power
Double cages	Low speed	SC200/200D	2X2000kg	0-40m/min	2x(3x11kw) /
		SC200/200D	2X2000kg	0-40m/min	2x(3×8.5kw)
		SC100/100D	2x1000kg	0-40m/min	2x(2x13kw)
	Mid speed	SC200/200Z	2x2000kg	0-60m/min	2x(2x23kw)
	Mid speed	SC100/100Z	2x1000kg	0-60m/min	2x(2x15kw)
Single cage	Low speed	SC200D	2000kg	0-40m/min	3x11kw /
		SC200D	2000kg	0-40m/min	3×8.5kw
		SC100D	1000kg	0-40m/min	2x13kw
	Mid speed	SC200Z	2000kg	0-60m/min	2x23kw
	Mid speed	SC100Z	1000kg	0-60m/min	2x15kw

RFQQ: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in
stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
before shippment.If you have another question, pls feel free to contact us as below:

Contact us
Skype:mickey1987888
Tel: +86 0573-84187637
Fax:+86 0573-841876376
Whatsapp& Mobile:+0086 18267343860Add: No.1111,xiehe park, nanhu district, jiaxing of Zhejiang province, China. Close to Shanghai (Post code: 314000)Email:mickey@jingyangmachinery.com Web:www.jingyanghoist.com / www.jingyangmachinery.com / www.jingyangroup.comJiaxing Jingyang Construction Machinery Co.,Ltd.

Relative spare parts:

Item	Part No.	English name	Item	Part No.	English name
1	DL-0	Cage	31	WG-19	Worm gear fan
2	WG-0	Reducing device	32	MAC-8	Rubber
3	MAC-010	Motor	33	WG-5	Woem wheel
4	ZJ-0	Mast section	34	WG-15	Worm
5	XS-00	Safety device	35	MAC-9	Couping
6	HY	Hydraulic spring	36	MAC-020	Pinion
7	TIE	Tie-in	37	ZJ100-10	Rack
8	TL-2	Safety device spanner	38	XK	Drop test operate box
9	PJ	Pipe joint	39	CT	Out operate box
10	BL100-G	Roller	40	FR	Resistance
11	BH-10	Cable joint	41	PS	Waterproof plug
12	ML100-9	Gate roller lower	42	SE	3-phase swotch
13	ML100-10	Gate roller upper	43	TC	Transfprmer
14	WM130-40	Rope pulley	44	SDD	Annunciator
15	BS-10	“J ” type screw	45	PLC	PLC Module
16	BQ-10	Cable joint	46	QF	Creepage switch
17	BM-24	Screw	47	SL	Limit switch
18	TL-1	Roller spanner	48	FM	Belling
19	RA-9	Adjustment unit	49	JS	Jacket
20	RA-12	Brake pad	50	FS	Fan
21	SP	Spring	51	SY	EL lock
22	DL-110	Rubber pad	52	F	Drop test plug
23	WG-03	Brearing	53	KCE	Thermal relay
24	WG-030	Oil seal	54	SQ	Braker
25	DXI-5	Nylon wheel	55	KMB	Contactor
26	RA-13	Rotary disk	56	BR	Brake unit
27	RA-120	Brake piece	57	SPL	Speed relay
28	RA-10	Brake disc	58	EL	Lamp
29	RA-7	Electromagnet	59	CS	Calling system
30	CAM-3	Counter roller	60	OL	Overload
